BW 82W Robotic push-pull system
Liquid Cooled Robot Welding Torch* Compatible Torch and Parts For TBI

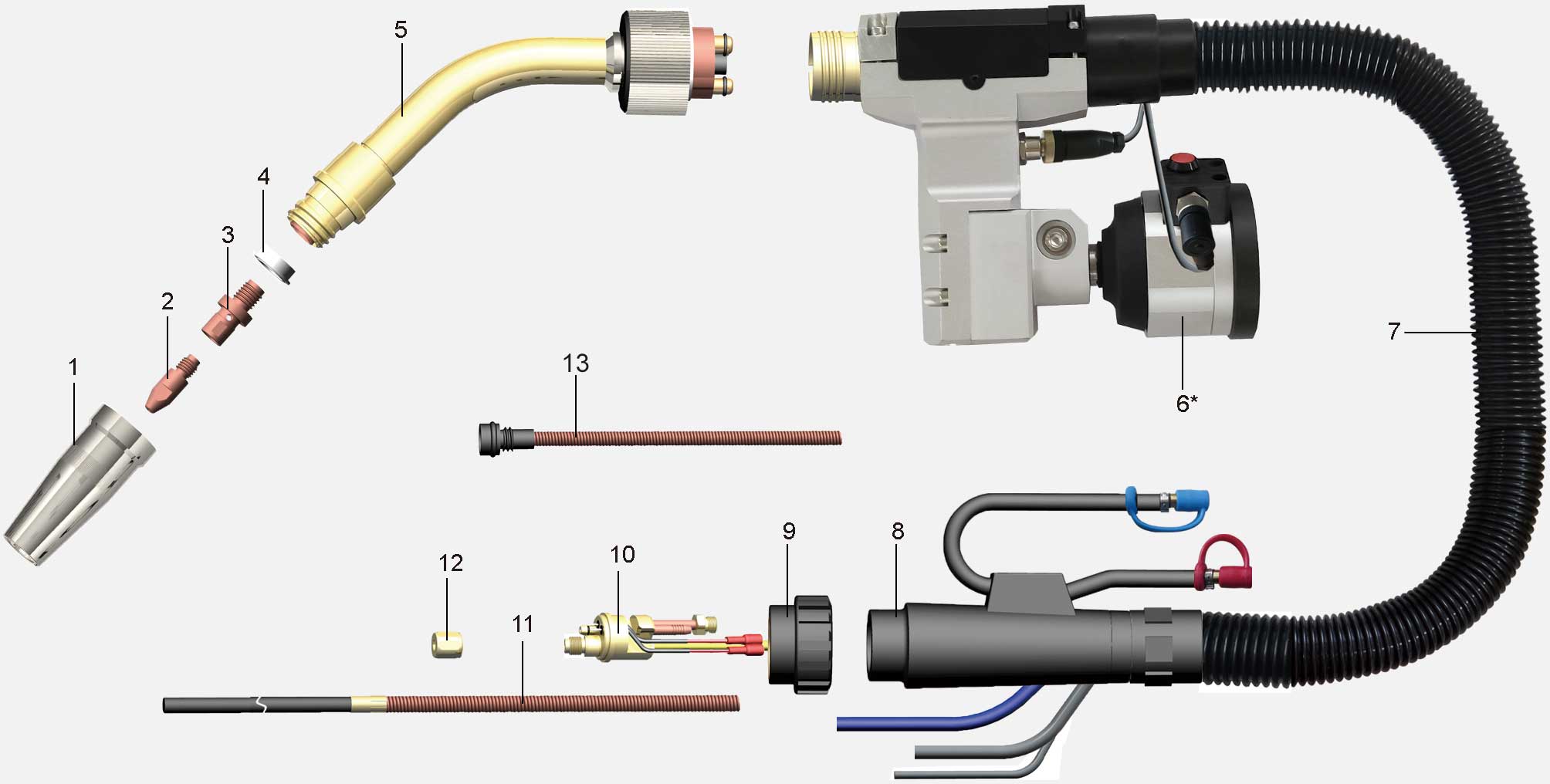

| No. | Order | Description | OEM p/n |
| RTB0300.15 | BW 82W Complete Torch 1.5m | ||
| 1 | RTB0330.15 | Nozzle Ø14mm | 345P322673 |
| 2 | MBZ0532.01 | M8×30×0.8 Contact Tip,E-Cu | |
| MBZ0532.02 | M8×30×1.0 Contact Tip,E-Cu | ||
| MBZ0532.03 | M8×30×1.2Contact Tip,E-Cu | ||
| RTB0332.01 | M8×30×1.4Contact Tip,E-Cu | ||
| MBZ0732.01 | M8×30×1.6Contact Tip,E-Cu | ||
| MBZ0533.01 | M8×30×0.8Contact Tip,CuCrZr | ||
| MBZ0533.02 | M8×30×1.0Contact Tip,CuCrZr | ||
| MBZ0533.03 | M8×30×1.2Contact Tip,CuCrZr | ||
| RTB0332.02 | M8×30×1.4Contact Tip,CuCrZr | ||
| MBZ0733.01 | M8×30×1.6Contact Tip,CuCrZr | ||
| 3 | RTB0335 | Contact Tip Holder | 342P208671 |
| 4 | RTB0341 | Insulation Ring | 673P102082 |
| 5 | RTB0343 | Swan Neck | 673P001023 |
| 6* | RTB0338 | Safety-off Mechanism | |
| 7 | RTB0360 | Cable Assembly, 1.5m | |
| 8 | MBZ0871 | Cable Support Machine Side | |
| 9 | MBZ0170 | Adapter Nut | |
| 10 | MBZ0872.02 | Central Connector WZ-2 | 501.0015 |
| 11 | RTB0382.01 | Liner, For wire Ø0.8-1.6, 1.5m | |
| 12 | MBZ0173 | Nut M10x1 | 501.0082 |
| 13 | RTB0387.01 | Liner, For Wire Ø0.8-1.6, 0.25m |
