BW ROB355 Buitl-in Air Cooled Robot Welding Torch
Air Cooled Robot Welding Torch

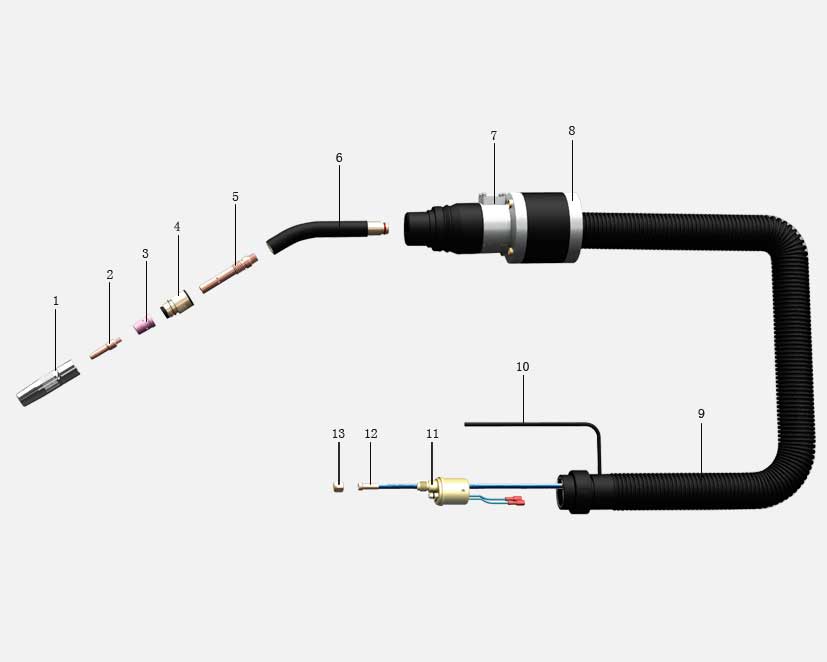

| No. | Order | Description |
| RBZ0500.01 | BW ROB355 Complete Torch 1M | |
| 1 | RBZ0530 | Conical NozzleΦ13mm |
| 2 | RBZ0533.01 | M6*40*0.8 Contact Tip |
| RBZ0533.02 | M6*40*0.9 Contact Tip | |
| RBZ0533.03 | M6*40*1.0 Contact Tip | |
| RBZ0533.04 | M6*40*1.2 Contact Tip | |
| RBZ0533.05 | M6*40*1.4 Contact Tip | |
| RBZ0533.06 | M6*40*1.6 Contact Tip | |
| 3 | MPA0239 | Gas Diffuser |
| 4 | MOT0240 | Insulator |
| 5 | RBZ0535 | Contact Tip Holder |
| 6 | RBZ0543 | Swan Neck31O |
| 7 | RBZ0538 | Safety-off Mechanism |
| 8 | RBZ0544 | Flange Seat |
| 9 | RBZ0560 | Cable Assembly |
| 10 | RBZ0574 | Control Line |
| 11 | MBZ0172.01 | Central Connector |
| 12 | RBZ0580 | Liner,For Wire Φ0.6-1.2mm，1米 |
| 13 | MBZ0173 | Nut |
