BW ROB350GC Air Cooled Robot Welding Torch
Air Cooled Robot Welding Torch* Compatible Torch and Parts For BINZEL

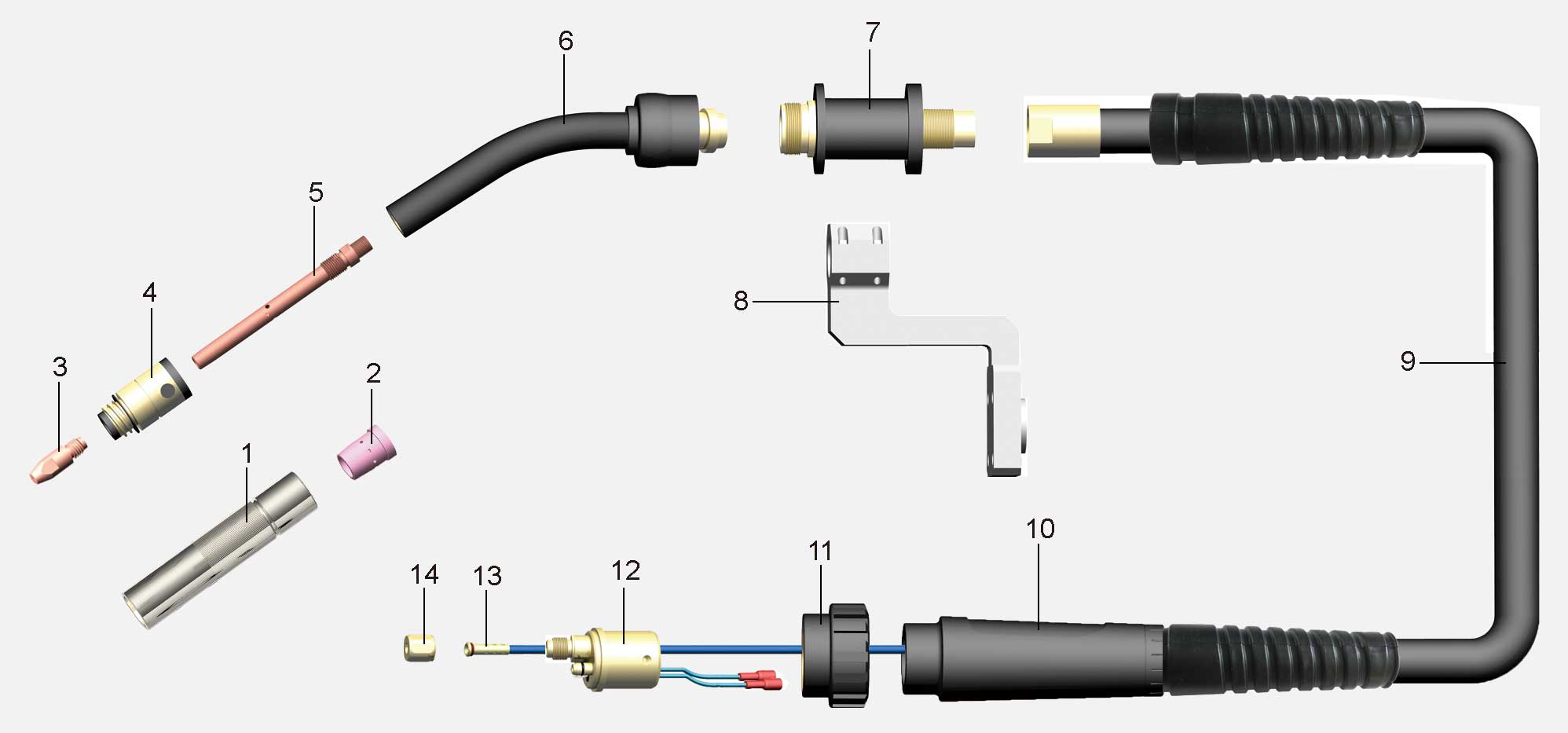

| No. | Order | Description | OEM p/n |
| RBZ0100.11 | BW ROB 350GC Complete Torch 1.1m | ||
| RBZ0101.16 | BW ROB 350GC Complete Torch 1.6m | ||
| 1 | RBZ0130.01 | Cylindrical Nozzle Ø16mm | 145.0557 |
| 2 | MPA0239 | Gas Diffuser | TGR01001 |
| 3 | MBZ0232.02 | M6×28×0.8 Contact Tip,E-Cu | 140.0054 |
| MBZ0232.04 | M6×28×1.0 Contact Tip,E-Cu | 140.0242 | |
| MBZ0332.01 | M6×28×1.2 Contact Tip,E-Cu | 140.0379 | |
| MBZ0233.02 | M6×28×0.8 Contact Tip,CuCrZr | 140.0054 | |
| MBZ0133.03 | M6×28×1.0 Contact Tip,CuCrZr | 140.0245 | |
| MBZ0333.01 | M6×28×1.2 Contact Tip,CuCrZr | 140.0382 | |
| 4 | RBZ0140 | Insulator | 980.0142.10 |
| 5 | RBZ0135 | Contact Tip Holder | 142.0152 |
| 6 | RBZ0143 | Swan Neck | 980.0004 |
| 7 | RBZ0142 | Clamp Module | |
| 8 | RBZ0144 | Fixed Bracket | |
| 9 | RBZ0160.01 | Cable Assembly,1.1m | |
| RBZ0160.02 | Cable Assembly,1.6m | ||
| 10 | MBZ0171 | Cable Support Machine Side | 501.2248 |
| 11 | MBZ0170 | Adapter Nut | 501.0213 |
| 12 | MBZ0172.01 | Central Connector KZ-2 | 501.0003 |
| 13 | RBZ0180.01 | Liner, For Wire 0.8-1.2, 1.1m | |
| RBZ0180.02 | Liner, For Wire 0.8-1.2, 1.6m | ||
| 14 | MBZ0173 | Nut M10x1 | 501.0082 |
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
