BW 501M Liquid Cooled MIG/MAG Impulse Welding Torch
EUR TorchesPatent Number: ZL202130291872.9/ZL202020042345.4

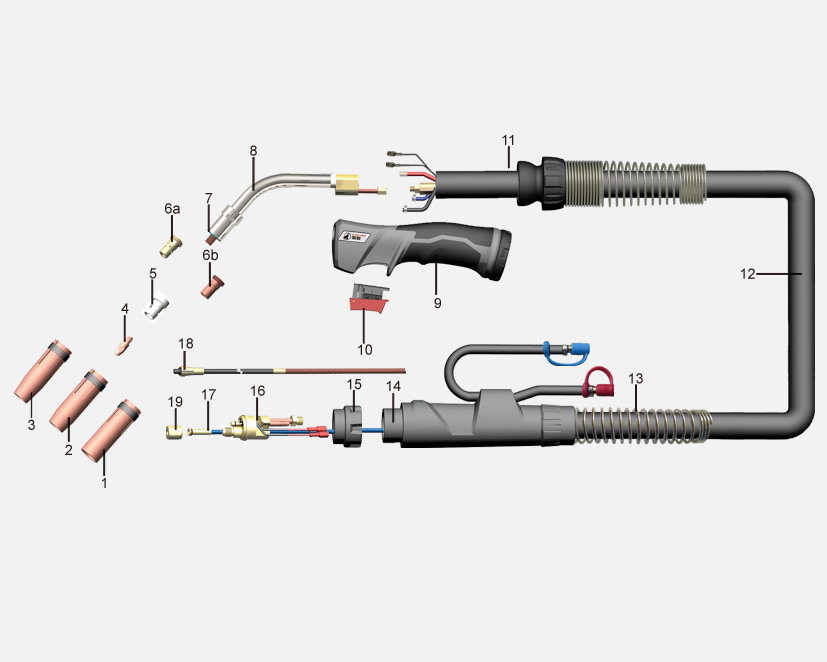

| No. | Order | Description | OEM p/n |
| MBZ1104.03 | BW 501M Complete Torch (BWM-VI BLACK-GRAY) 3m | ||
| MBZ1105.05 | BW 501M Complete Torch (BWM-VI BLACK-GRAY) 5m | ||
| 1 | MBZ0830.01 | Cylindrical Nozzle Ø19mm | 145.0051 |
| 2 | MBZ0830.02 | Conical Nozzle Ø16mm | 145.0085 |
| 3 | MBZ0830.03 | Tapered Nozzle Ø14mm | 145.0132 |
| 4 | MBZ0232.02 | M6x28x0.8 Contact Tip, E-Cu | 140.0051 |
| MBZ0232.04 | M6x28x1.0 Contact Tip, E-Cu | 140.0242 | |
| MBZ0332.01 | M6x28x1.2 Contact Tip, E-Cu | 140.0379 | |
| MBZ0832.01 | M6x28x1.6 Contact Tip, E-Cu | 140.0555 | |
| MBZ0133.02 | M6x28x0.8 Contact Tip, CuCrZr | 140.0054 | |
| MBZ0233.04 | M6x28x1.0 Contact Tip, CuCrZr | 140.0245 | |
| MBZ0333.01 | M6x28x1.2 Contact Tip, CuCrZr | 140.0382 | |
| MBZ0833.01 | M6x28x1.6 Contact Tip, CuCrZr | 140.0558 | |
| MBZ0532.01 | M8x30x0.8 Contact Tip, E-Cu | 140.0114 | |
| MBZ0532.02 | M8x30x1.0 Contact Tip, E-Cu | 140.0313 | |
| MBZ0532.03 | M8x30x1.2 Contact Tip, E-Cu | 140.0442 | |
| MBZ0732.01 | M8x30x1.6 Contact Tip, E-Cu | 140.0587 | |
| MBZ0533.01 | M8x30x0.8 Contact Tip, CuCrZr | 140.0117 | |
| MBZ0533.02 | M8x30x1.0 Contact Tip, CuCrZr | 140.0316 | |
| MBZ0533.03 | M8x30x1.2 Contact Tip, CuCrZr | 140.0445 | |
| MBZ0733.01 | M8x30x1.6 Contact Tip, CuCrZr | 140.0590 | |
| 5 | MBZ0839.01 | Gas Diffuser DMC | 030.0145 |
| MBZ0839.02 | Gas Diffuser Ceramic | 030.0190 | |
| 6a | MBZ0835.01 | Contact Tip Holder M6x25 Brass | 142.0008 |
| MBZ0835.03 | Contact Tip Holder M6x29 Brass | 142.0013 | |
| MBZ0835.05 | Contact Tip Holder M8x25 Brass | 142.0022 | |
| MBZ0835.07 | Contact Tip Holder M8x29 Brass | 142.0027 | |
| 6b | MBZ0835.02 | Contact Tip Holder M6x25 CuCrZr | |
| MBZ0835.04 | Contact Tip Holder M6x29 CuCrZr | ||
| MBZ0835.06 | Contact Tip Holder M8x25 CuCrZr | ||
| MBZ0835.08 | Contact Tip Holder M8x29 CuCrZr | ||
| 7 | MBZ0849 | Insulator | 030.0019 |
| 8 | MBZ0843 | Swan Neck | |
| 9 | MBZ0122.03 | Handle BWM-VI Black-Gray | |
| 10 | MBZ0195.02 | Switch | |
| 11 | MBZ0896.02 | Ball Joint Cable Support Spring | |
| 12 | MBZ0860.01 | Cable Assembly, 3m | |
| MBZ0860.02 | Cable Assembly, 5m | ||
| 13 | MBZ0897 | Back Cable Support Spring | |
| 14 | MBZ0871.02 | Cable Support Machine Side | |
| 15 | MBZ0170.02 | Adapter Nut | |
| 16 | MBZ0872 | Central Connector WZ-2 | 501.0015 |
| 17 | MBZ0680.02.35 | Blue Liner, For Wire Ø1.0-1.2, 3.5m | |
| MBZ0680.02.55 | Blue Liner, For Wire Ø1.0-1.2, 5.5m | ||
| 18 | MBZ0880.04.35 | Liner, For Alu Wire Ø1.6, 3.5m | |
| MBZ0880.04.55 | Liner, For Alu Wire Ø1.6, 5.5m | ||
| 19 | MBZ0173 | Nut M10x1 | 501.0082 |
Ordering Help :
Excel In Impulse Welding Of Alu, Carbon Steel And Stainless Steel.
