HPR130XD/HPR260XD/HPR400XD Compatible parts for HYPERTHERM
Compatible parts for HYPERTHERM

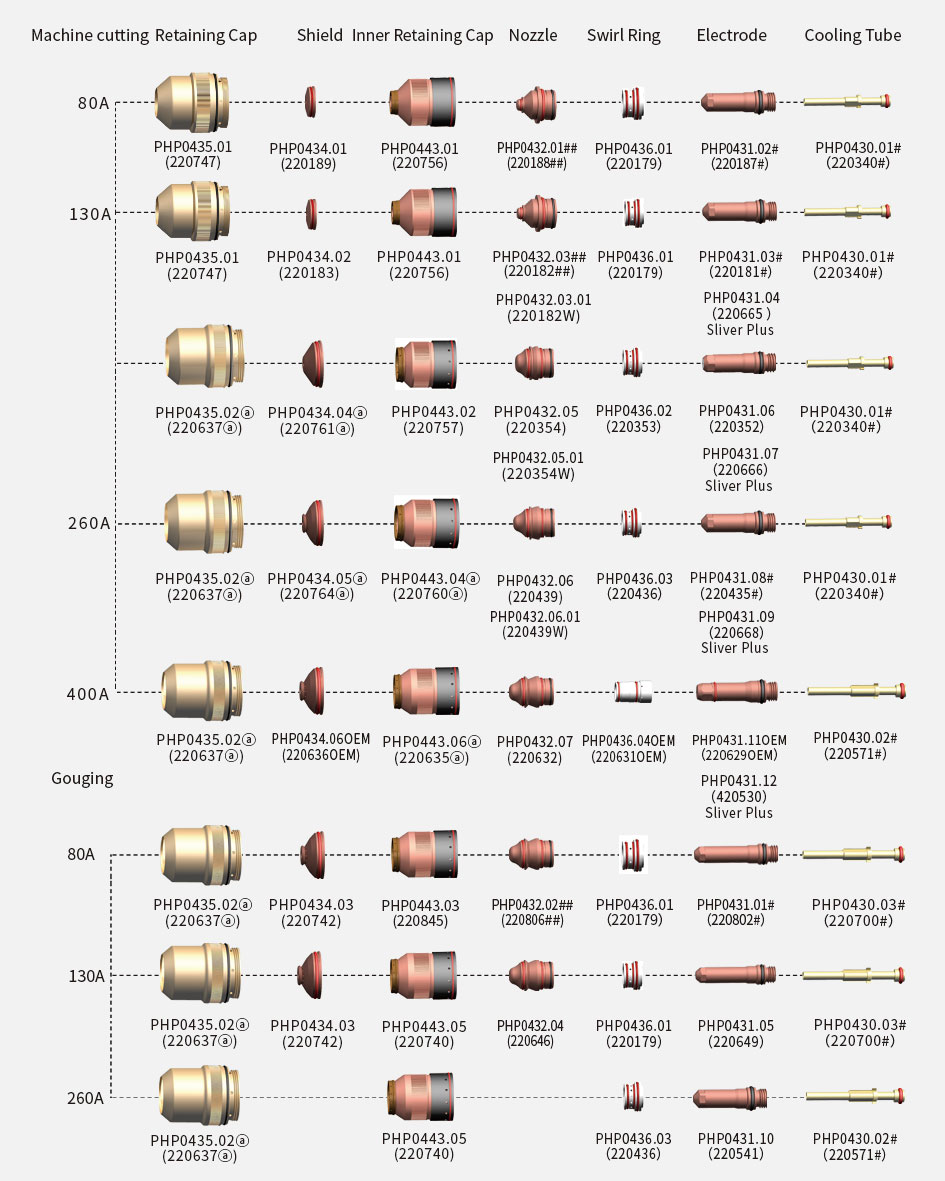

| Electric current | Retaining Cap | Shield | Inner Retaining Cap | Nozzle | Swirl Ring | Electrode | Cooling Tube | |
| 80A | Order | PHP0435.01 | PHP0434.01 | PHP0443.01 | PHP0432.01## | PHP0436.01 | PHP0431.02# | PHP0430.01# |
| OEM p/n | 220747 | 220189 | 220756 | 220188## | 220179 | 220187# | 220340# | |
| 130A | Order | PHP0435.01 | PHP0434.02 | PHP0443.01 | PHP0432.03## | PHP0436.01 | PHP0431.03# | PHP0430.01# |
| OEM p/n | 220747 | 220183 | 220756 | 220182## | 220179 | 220181# | 220340# | |
| Order | PHP0432.03.01 | PHP0431.04 | ||||||
| OEM p/n | 220182W | 220665 Silver Plus | ||||||
| 200A | Order | PHP0435.02 ⓐ | PHP0434.04 ⓐ | PHP0443.02 | PHP0432.05 | PHP0436.02 | PHP0431.06 | PHP0430.01# |
| OEM p/n | 220637 ⓐ | 220761 ⓐ | 220757 | 220354 | 220353 | 220352 | 220340# | |
| Order | PHP0432.05.01 | PHP0431.07 | ||||||
| OEM p/n | 220354W | 220666 Silver Plus | ||||||
| 260A | Order | PHP0435.02 ⓐ | PHP0434.05 ⓐ | PHP0443.04 | PHP0432.06 | PHP0436.03 | PHP0431.08# | PHP0430.01# |
| OEM p/n | 220637 ⓐ | 220764 ⓐ | 220760 | 220439 | 220436 | 220435# | 220340# | |
| Order | PHP0432.06.01 | PHP0431.09 | ||||||
| OEM p/n | 220439W | 220668 Silver Plus | ||||||
| 400A | Order | PHP0435.02 ⓐ | PHP0434.06 OEM | PHP0443.06 ⓐ | PHP0432.07 | PHP0436.04 OEM | PHP0431.11 OEM | PHP0430.02# |
| OEM p/n | 220637 ⓐ | 220636 OEM | 220635 ⓐ | 220632 | 220631 OEM | 220629 OEM | 220571# | |
| Order | PHP0431.12 | |||||||
| OEM p/n | 420530 Silver Plus | |||||||
| 80A | Order | PHP0435.02 ⓐ | PHP0434.03 | PHP0443.03 | PHP0432.02## | PHP0436.01 | PHP0431.01# | PHP0430.03# |
| OEM p/n | 220637 ⓐ | 220742 | 220845 | 220806## | 220179 | 220802# | 220700# | |
| 130A | Order | PHP0435.02 ⓐ | PHP0434.03 | PHP0443.05 | PHP0432.04 | PHP0436.01 | PHP0431.05 | PHP0430.03# |
| OEM p/n | 220637 ⓐ | 220742 | 220740 | 220646 | 220179 | 220649 | 220700# | |
| 260A | Order | PHP0435.02 ⓐ | PHP0443.05 | PHP0436.03 | PHP0431.10 | PHP0430.02# | ||
| OEM p/n | 220637 ⓐ | 220740 | 220436 | 220541 | 220571# |
ⓐ Must be used only as a set of shield, shield cap and innner retaining cap, this complete set is interchangeable and compatible with original parts.# BLACK WOLF Electrodes have to be used with BLACK WOLF design cooling tube.
OEM Original parts.
## Nozzles in some cases can require decrease of gas flow,offers savings of the costs for oxygen.
W Whole nozzle.
BLACK WOLF is in no way affiliated with HYPERTHERM. The parts advertised for sale are not genuine HYPERTHERM parts, but are parts made for and by BLACK WOLF.
References to HYPERTHERM machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine HYPERTHERM parts in place of BLACK WOLF parts.
