POWERMAX125 Compatible parts for HYPERTHERM
Compatible parts for HYPERTHERM

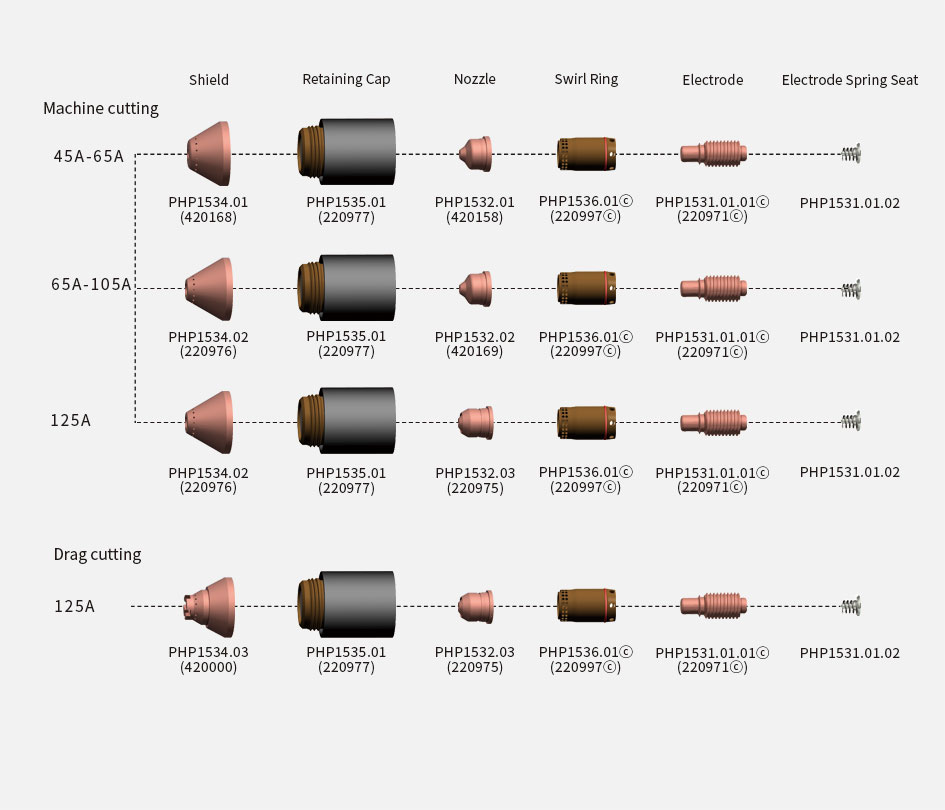

| Electric current | Shield | Retaining Cap | Nozzle | Swirl Ring | Electrode | Electrode Spring Seat | |
| 45A-65A | Order | PHP1534.01 | PHP1535.01 | PHP1532.01 | PHP1536.01 ⓒ | PHP1531.01.01 ⓒ | PHP1531.01.02 ⓒ |
| OEM p/n | 420168 | 220977 | 420158 | 220997 ⓒ | 220971 ⓒ | ||
| 65A-105A | Order | PHP1534.02 | PHP1535.01 | PHP1532.02 | PHP1536.01 ⓒ | PHP1531.01.01 ⓒ | PHP1531.01.02 ⓒ |
| OEM p/n | 220976 | 220977 | 420169 | 220997 ⓒ | 220971 ⓒ | ||
| 125A | Order | PHP1534.02 | PHP1535.01 | PHP1532.03 | PHP1536.01 ⓒ | PHP1531.01.01 ⓒ | PHP1531.01.02 ⓒ |
| OEM p/n | 220976 | 220977 | 220975 | 220997 ⓒ | 220971 ⓒ | ||
| 125A | Order | PHP1534.03 | PHP1535.01 | PHP1532.03 | PHP1536.01 ⓒ | PHP1531.01.01 ⓒ | PHP1531.01.02 ⓒ |
| OEM p/n | 420000 | 220977 | 220975 | 220997 ⓒ | 220971 ⓒ |
ⓒ Must be used only as a set of electrode and swirl ring, this complete set is interchangeable and compatible with original parts.
BLACK WOLF is in no way affiliated with HYPERTHERM. The parts advertised for sale are not genuine HYPERTHERM parts, but are parts made for and by BLACK WOLF.
References to HYPERTHERM machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine HYPERTHERM parts in place of BLACK WOLF parts.
