BW P-80 BW P-80P Air cooled plasma cutting torch
With High Frequency Air CooledPatent number: ZL201130133354.0
Compatible Torch and Parts For PANASONIC

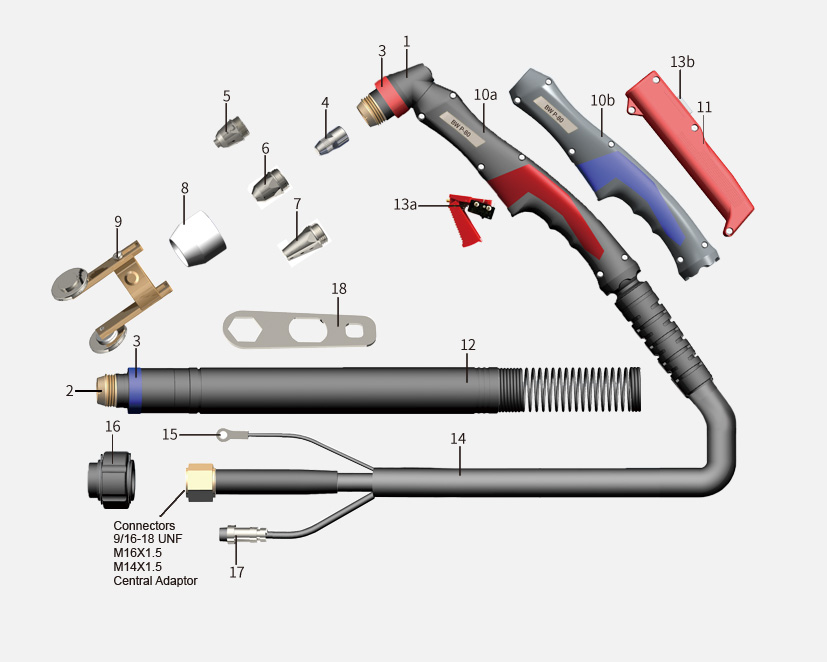

| No. | Order | Description | OEM p/n |
| PPA0100.05 | BW P-80 Black Wolf Hand Torch 60A M14×1.5, 5m | ||
| PPA0101.05 | BW P-80 Black Wolf Hand Torch 80A M14×1.5, 5m | ||
| PPA0102.05 | BW P-80 Black Wolf Hand Torch 100A M14×1.5, 5m | ||
| PPA0103.05 | BW P-80 Panasonic Hand Torch 60A M16×1.5, 5m | ||
| PPA0104.05 | BW P-80 Panasonic Hand Torch 80A M16×1.5, 5m | ||
| PPA0105.05 | BW P-80 Panasonic Hand Torch 100A M16×1.5, 5m | ||
| PPA0001.05 | BW P-80P Machine Torch 60A M14×1.5, 5m | ||
| PPA0002.05 | BW P-80P Machine Torch 80A M14×1.5, 5m | ||
| PPA0003.05 | BW P-80P Machine Torch 100A M14×1.5, 5m | ||
| 1 | PPA0110 | BW P-80 Hand Torch Head | TKU08103 |
| 2 | PPA0111 | BW P-80P Machine Torch Head | TKU08104 |
| 3 | PPA0112 | Insulated Ring | TFQ08102 |
| 4 | PPA0131 | Electrode | TET02033 |
| 5 | PPA0132.01 | Nozzle 1.1mm 40A | TET01110 |
| PPA0132.02 | Nozzle 1.3mm 60A | TET01310 | |
| PPA0132.03 | Nozzle 1.5mm 80A | TET01512 | |
| PPA0132.04 | Nozzle 1.7mm 100A | TSM06626 | |
| 6 | PPA0133.01 | Old Style Nozzle 1.1mm 40A | TET01035 |
| PPA0133.02 | Old Style Nozzle 1.3mm 60A | TET01035 | |
| PPA0133.02 | Old Style Nozzle 1.3mm 60A | TET01035 | |
| PPA0133.03 | Old Style Nozzle 1.5mm 80A | TET01507 | |
| PPA0133.04 | Old Style Nozzle 1.7mm 100A | TET01809 | |
| 7 | PPA0132.05 | Gouging Nozzle 2.5mm | TET02502 |
| 8 | PPA0134.02 | Shield With Conductive Silver Plated | TGN02004 |
| PPA0134.01 | Normal Shield | ||
| 9 | PPA0138 | Site Wheel | |
| 10a | PPA0120.01 | Black Wolf Handle, For Hand Torch (Red-Black) | |
| 10b | PPA0120.02 | Black Wolf Handle, For Hand Torch (Blue-Gray) | |
| 11 | PPA0120.03 | Panasonic Hand Torch | TKC00009 |
| 12 | PPA0121.01 | Ø25 Handle, For Machine Torch | TCK06101 |
| PPA0121.02 | Ø30 Handle, For Machine Torch | ||
| PPA0121.03 | Ø35 Handle, For Machine Torch | ||
| 13a | PPA0124.01 | Switch | |
| 13b | PPA0124.02 | Panasonic Hand Switch | |
| 14 | PPA0150 | Cable Assembly 60A (EPDM Cover) | |
| PPA0151 | Cable Assembly 80A (EPDM Cover) | ||
| PPA0152 | Cable Assembly 100A (EPDM Cover) | ||
| PPA0153 | Cable Assembly 60A (Rubber Cover) | ||
| PPA0154 | Cable Assembly 80A (Rubber Cover) | ||
| PPA0155 | Cable Assembly 100A (Rubber Cover) | ||
| 15 | 258 | Pilot Cable | |
| 16 | PPA0170.01 | Nut Cup | |
| 17 | PPA0171 | Small 2-Pin Plug | |
| 18 | PPA013A | Spanner |
Ordering Help :
1.Shield with Conductive silver plated is used for torch with protection loop, normal shield without silver plated is used for torch without protection loop；
2. Please specify Black wolf handle types when ordering : Black wolf Red-black, Black wolf blue-gray；
3.When ordering, please specify the following type of use；
4.Please specify the type of sheath when ordering, and you can use EPDM Cover and Rubber Cover.
BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts, but are parts made for and by BLACK WOLF.
References to PANASOINC machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.
