BW P-80YT Air cooled plasma cutting torch
With High Frequency Air CooledPatent number: ZL201730356693.2
Compatible Parts For PANASONIC

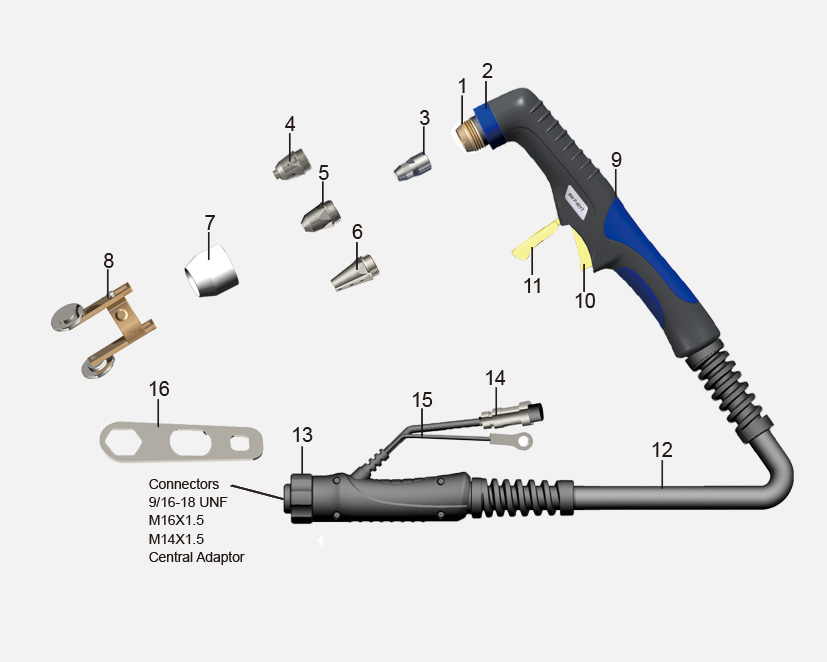

| No. | Order | Description | OEM p/n |
| PPA0200.05 | BW P-80YT Black Wolf YT Hand Torch 60A M14×1.5, 5m | ||
| PPA0201.05 | BW P-80YT Black Wolf YT Hand Torch 80A M14×1.5, 5m | ||
| PPA0202.05 | BW P-80YT Black Wolf YT Hand Torch 100A M14×1.5, 5m | ||
| 1 | PPA0210 | BW P-80YT Hand Torch Head | |
| 2 | PPA0112 | Insulated Ring | TFQ08102 |
| 3 | PPA0131 | Electrode | TET02033 |
| 4 | PPA0132.01 | Nozzle 1.1mm 40A | TET01110 |
| PPA0132.02 | Nozzle 1.3mm 60A | TET01310 | |
| PPA0132.03 | Nozzle 1.5mm 80A | TET01512 | |
| PPA0132.04 | Nozzle 1.7mm 100A | TSM06626 | |
| 5 | PPA0133.01 | Old Style Nozzle 1.1mm 40A | |
| PPA0133.02 | Old Style Nozzle 1.3mm 60A | TET01035 | |
| PPA0133.03 | Old Style Nozzle 1.5mm 80A | TET01507 | |
| PPA0133.04 | Old Style Nozzle 1.7mm 100A | TET01809 | |
| 6 | PPA0132.05 | Gouging Nozzle 2.5mm | TET02502 |
| 7 | PPA0134.02 | Plate Silver Shield | |
| PPA0134.01 | Normal Shield | ||
| 8 | PPA0138 | Site Wheel | |
| 9 | PPA0220.01 | YT Handle | |
| 10 | PPA0124.01 | Switch | |
| 11 | PPA0224.01 | Switch protection block | |
| 12 | PPA0250 | YT Cable Assembly 60A | |
| PPA0251 | YT Cable Assembly 80A | ||
| PPA0252 | YT Cable Assembly 100A | ||
| 13 | PPA0278 | YT Connection | |
| 14 | PPA0171 | Conntector 2 Holes | |
| 15 | 258 | Cable For Pilot Arc | |
| 16 | PPA013A | Spanner |
Plate silver shield is used for torch with protection loop,Normal shield without silver plated is used for torch without protection loop.
BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts, but are parts made for and by BLACK WOLF.
References to PANASOINC machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.
