#2 Air cooled MIG/MAG welding torch
TWK TorchesCompatible Torch and Parts For TWC

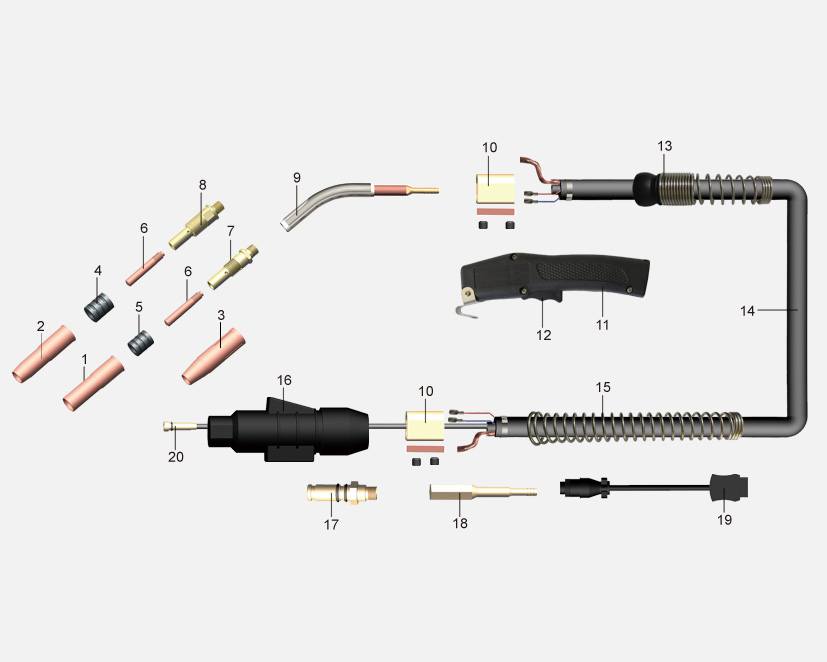

| No. | Order | Description | OEM p/n |
| MTW0100.03 | BW #2 Complete Torch 3m | ||
| MTW0101.05 | BW #2 Complete Torch 5m | ||
| 1 | MTW0130.01 | Nozzle 5/8ӯ15.9 L=77.5 | 22-62 |
| MTW0130.02 | Nozzle 1/2ӯ12.7 L=77.5 | 22-50 | |
| MTW0130.03 | Nozzle 3/8ӯ9.5 L=77.5 | 22T37SS | |
| 2 | MTW0130.04 | Nozzle 1/2ӯ12.7 L=88 | 24A50 |
| MTW0130.05 | Nozzle 1/2ӯ12.7 L=88 | 24A50SS | |
| MTW0130.06 | Nozzle 5/8ӯ15.9 L=88 | 24A62 | |
| MTW0130.07 | Nozzle 3/4ӯ19 L=88 | 24A75 | |
| MTW0130.08 | Nozzle 3/4ӯ19 L=88 | 24A75SS | |
| 3 | MTW0130.09 | Nozzle 3/8ӯ9.5 L=82 | 23-37 |
| MTW0130.10 | Nozzle 3/8ӯ9.5 L=79 | 23-37F | |
| MTW0130.11 | Nozzle 1/2ӯ12.7 L=82 | 23-50 | |
| MTW0130.12 | Nozzle 1/2ӯ12.7 L=79 | 23-50F | |
| MTW0130.13 | Nozzle 5/8ӯ15.9 L=82 | 23-62 | |
| MTW0130.14 | Nozzle 5/8ӯ15.9 L=79 | 23-62F | |
| MTW0130.15 | Nozzle 3/4ӯ19 L=82 | 23-75 | |
| MTW0130.16 | Nozzle 3/4ӯ19 L=79 | 23-75F | |
| MTW0130.17 | Nozzle 3/8” Ø9.5 L=44.5 | 24CT37S | |
| MTW0130.18 | Nozzle 1/2” Ø12.7 L=44.5 | 24CT50S | |
| MTW0130.19 | Nozzle 5/8” Ø15.9 L=44.5 | 24CT62S | |
| MTW0130.20 | Nozzle 3/4” Ø19 L=44.5 | 24CT75S | |
| 4 | MTW0140.01 | Insulator | 34A |
| 5 | MTW0140.03 | Insulator | 32 |
| 6 | MTW0132.01 | Contact Tip 0.8 | 14-23 |
| MTW0132.02 | Contact Tip 1.0 | 14-30 | |
| MTW0132.03 | Contact Tip 1.1 | 14-35 | |
| MTW0132.04 | Contact Tip 1.2 | 14-40 | |
| MTW0132.05 | Contact Tip 1.4 | 14-45 | |
| MTW0132.06 | Contact Tip 1.6 | 14-52 | |
| MTW0132.07 | Contact Tip 1.8 | 14-116 | |
| MTW0132.08 | Contact Tip 2.2 | 14-564 | |
| MTW0132.09 | Contact Tip 1.1 | 14H35 | |
| MTW0132.10 | Contact Tip 1.2 | 14H40 | |
| MTW0132.11 | Contact Tip 1.4 | 14H45 | |
| MTW0132.12 | Contact Tip 1.6 | 14H52 | |
| MTW0132.13 | Contact Tip 1.8 | 14H116 | |
| MTW0132.14 | Contact Tip 2.3 | 14H564 | |
| 7 | MTW0136.01 | Contact Tip Holder 50.8 | 52 |
| 8 | MTW0136.02 | Contact Tip Holder 57 | 52FN |
| 9 | MTW0143 | Swan Neck | 62J-45 |
| 10 | MTW0145 | Cable Connector Block Assembly | 102 |
| 11 | MTW012D | Handle | C83 |
| 12 | MTW0195.08 | Switch | |
| 13 | MPA0292 | Front Cable Support Spring | |
| 14 | MTW0160.01 | Cable Assembly, 3m | |
| MTW0160.02 | Cable Assembly, 5m | ||
| 15 | MTW0197 | Back Cable Support Spring | |
| 16 | MTW0171 | Support Adapter | |
| 17 | MTW0175 | Cable Connector Rear | |
| 18 | MTW0177 | Connector Plug | |
| 19 | MTW0178 | Control Line Assembly | |
| 20 | MTM0183.01F | Liner, For Wire Ø0.6-1.2, 3.5m | |
| MTM0183.01G | Liner, For Wire Ø0.6-1.2, 5.5m |
BLACK WOLF is in no way affiliated with TWECO. The parts advertised for sale are not genuine TWECO parts, but are parts made for and by BLACK WOLF.
References to TWECO machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine TWECO parts in place of BLACK WOLF parts.
