BW Q300 Air cooled MIG/MAG welding torch
BND TorchesCompatible Torch and Parts For BND

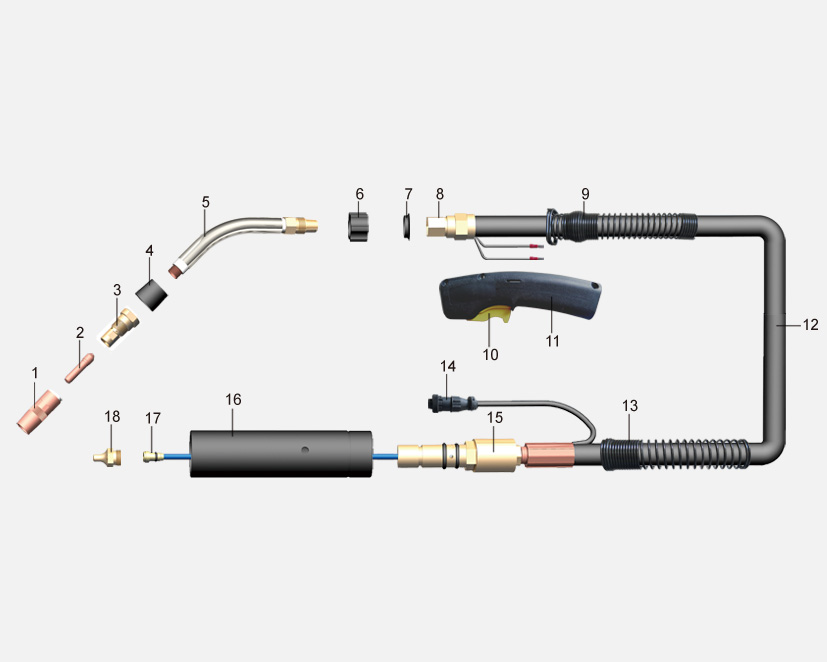

| No. | Order | Description | OEM p/n |
| MBN0100.03 | BW Q300 Complete Torch 3m | ||
| MBN0101.05 | BW Q300 Complete Torch 5m | ||
| 1 | MBN0130 | Nozzle Ø16mm | |
| 2 | MBN0132.01 | Contact Tip 0.8 | T-030 |
| MBN0132.02 | Contact Tip 0.9 | T-035 | |
| MBN0132.03 | Contact Tip 1.0 | T-039 | |
| MBN0132.04 | Contact Tip 1.2 | T-045 | |
| 3 | MBN0135 | Gas Diffuser | DS-1 |
| 4 | MBN0147 | Insulator Cap | 4523R |
| 5 | MBN0143 | Swan Neck | QT3-45 |
| 6 | MBN0148 | Protection Nut | 1840057 |
| 7 | MBN0149 | Insulator | 1840031 |
| 8 | MBN0175.01 | Connector Cone | 4213B |
| 9 | MBN0196 | Handle Spring | 2520042 |
| 10 | MBN0195.07 | Switch | 2690001 |
| 11 | MBN012C | Handle | 1880155 |
| 12 | MBN0160.01 | Cable Assembly, 3m | |
| MBN0160.02 | Cable Assembly, 5m | ||
| 13 | MBN0197 | Back Cable Support Spring | |
| 14 | MBN0174 | Control Lead Plug | W11127-002 |
| 15 | MBN0175.01 | Rear Connector Body | |
| 16 | MBN0171 | Cable Support Machine Side | |
| 17 | MBN0182.01F | Blue Liner, For Wire Ø0.9-1.1, 3.5m | |
| MBN0182.01G | Blue Liner, For Wire Ø0.9-1.1, 5.5m | ||
| 18 | MBN0176 | Guide Cap |
BLACK WOLF is in no way affiliated with BERNARD. The parts advertised for sale are not genuine BERNARD parts, but are parts made for and by BLACK WOLF.
References to BERNARD machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BERNARD parts in place of BLACK WOLF parts.
