BW MAXI 4000 Water cooled MIG/MAG welding torch
Trfmt TorchesCompatible Torch and Parts For Trafimet

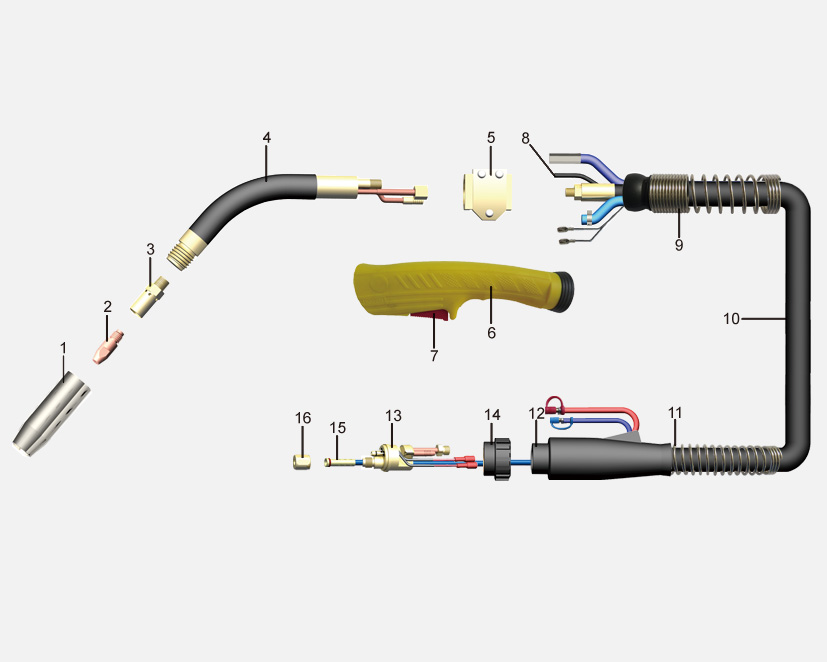

| No. | Order | Description | OEM p/n |
| MTF0100.03 | BW MAXI 4000 Complete Torch 3m | ||
| MTF0101.05 | BW MAXI 4000 Complete Torch 5m | ||
| 1 | MTF0130 | Nozzle Ø18mm | MC12 |
| 2 | MBZ0532.02 | M8×30x1.0 Contact Tip, E-Cu | MD5-10 |
| MBZ0532.03 | M8×30x1.2 Contact Tip, E-Cu | MD5-12 | |
| MTF0132.01 | M8×30x1.4 Contact Tip, E-Cu | MD5-14 | |
| MBZ0732.01 | M8×30x1.6 Contact Tip, E-Cu | MD5-16 | |
| MBZ0533.02 | M8×30x1.0 Contact Tip, CuCrZr | MD5-80 | |
| MBZ0533.03 | M8×30x1.2 Contact Tip, CuCrZr | MD5-82 | |
| MTF0133.01 | M8×30x1.4 Contact Tip, CuCrZr | MD5-84 | |
| MBZ0733.01 | M8×30x1.6 Contact Tip, CuCrZr | MD5-86 | |
| 3 | MTF0136 | Contact Tip Holer | ME9 |
| 4 | MTF0143 | Swan Neck | MG16 |
| 5 | MTF0143 | Swan Neck Holder | MT117 |
| 6 | MTF012B | Handle | MT104 |
| 7 | MBZ0295.04 | Switch | |
| 8 | MTF0178 | Switch Connector Collet | |
| 9 | MTF0196 | Front Cable Support Spring | EA320 |
| 10 | MTF0160.01 | Cable Assembly, 3m | |
| MTF0160.02 | Cable Assembly, 5m | ||
| 11 | MTF0197 | Back Cable Support Spring | |
| 12 | MTF0171 | Cable Support Machine Side | |
| 13 | MBZ0872.02 | Central Connector WZ-2 | 501.0015 |
| 14 | MBZ0170 | Adapter Nut | |
| 15 | MBZ0680.02F | Blue Liner, For Wire Ø1.0-1.2, 3.5m | |
| MBZ0680.02G | Blue Liner, For Wire Ø1.0-1.2, 5.5m | ||
| 16 | MBZ0173 | Nut M10x1 |
BLACK WOLF is in no way affiliated with TRAFIMET. The parts advertised for sale are not genuine TRAFIMET parts, but are parts made for and by BLACK WOLF.
References to TRAFIMET machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine TRAFIMET parts in place of BLACK WOLF parts.
