BW 605D Water cooled MIG/MAG welding torch
EUR TorchesPatent number: ZL201730356463.6
Compatible Torch and Parts For BINZEL

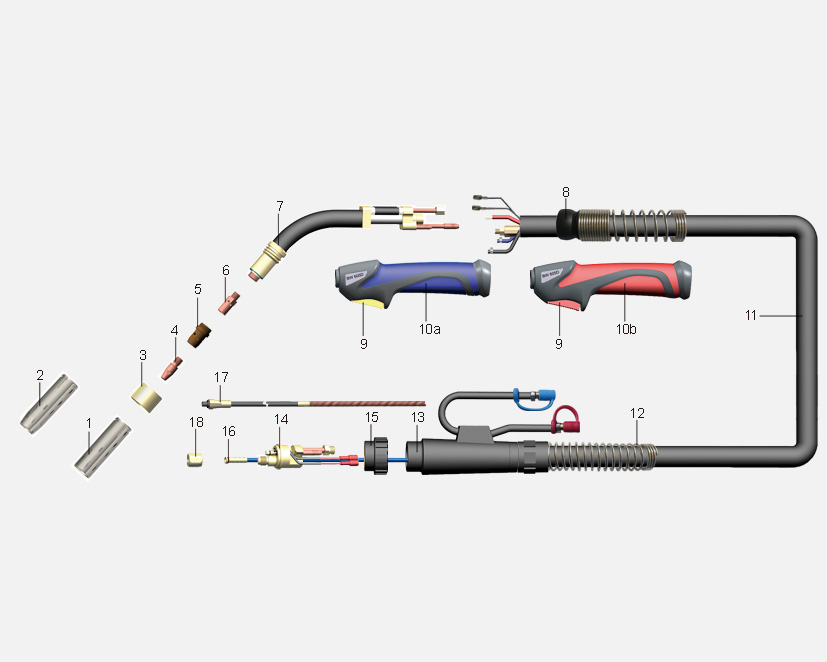

| No. | Order | Description | OEM p/n |
| MBZ1000.03 | BW 605D Complete Torch (BWM-III BLUE-GRAY) 3m | ||
| MBZ1001.05 | BW 605D Complete Torch (BWM-III BLUE-GRAY) 5m | ||
| MBZ1002.03 | BW 605D Complete Torch (BWM-III RED-GRAY) 3m | ||
| MBZ1003.05 | BW 605D Complete Torch (BWM-III RED-GRAY) 5m | ||
| 1 | MBZ1030.01 | Cylindrical Nozzle Ø20mm | 145.0678.10 |
| 2 | MBZ1030.02 | Conical Nozzle Ø17mm | 145.0669 |
| 3 | MBZ1037 | GasNozzle Adaptor | 766.1070 |
| 4 | MBZ1032.01 | M10x35x1.0 Contact Tip,E-Cu | 140.1542.10 |
| MBZ1032.02 | M10x35x1.2 Contact Tip,E-Cu | 140.1543.10 | |
| MBZ1032.03 | M10x35x1.6 Contact Tip,E-Cu | 140.1544.10 | |
| MBZ1031.01 | M10x35x1.0 Contact Tip,CuCrZr | 140.0348 | |
| MBZ1031.02 | M10x35x1.2 Contact Tip,CuCrZr | 140.0481 | |
| MBZ1031.03 | M10x35x1.6 Contact Tip,CuCrZr | 140.0616 | |
| 5 | MBZ1039 | Gas Diffuser | 766.0518 |
| 6 | MBZ1035 | Contact Tip Holder | 142.0202.10 |
| 7 | MBZ1043 | Swan Neck | 766.0540.0 |
| 8 | MBZ0896 | Ball Joint Cable Support Spring | |
| 9 | MBZ0195.03 | Switch | |
| 10a | MBZ0922.02 | BWM-III Handle (BLUE-GRAY) | |
| 10b | MBZ0922.01 | BWM-III Handle (RED-GRAY) | |
| 11 | MBZ1060.01 | Cable Assembly,3m | |
| MBZ1060.02 | Cable Assembly,5m | ||
| 12 | MBZ0897 | Back Cable Support Spring | |
| 13 | MBZ0871 | Cable Support Machine Side | 501.2379 |
| 14 | MBZ0872.02 | Central Connector WZ-2 | 501.0015 |
| 15 | MBZ0170 | Adapter Nut | 500.0213 |
| 16 | MB10680.05F | Blue Liner,For Wire Ø1.0-1.6,3.5m | |
| MBZ1080.05G | Blue Liner,For Wire Ø1.0-1.6,5.5m | ||
| 17 | MBZ0885.03F | Liner,For Alu Wire Ø1.6,3.5m | |
| MBZ0885.03G | Liner,For Alu Wire Ø1.6,5.5m | ||
| 18 | MBZ0173 | Nut M10x1 | 501.0082 |
Excel In Impulse Welding Of Alu, Carbon Steel And Stainless Steel.
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.
BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
