BW 23KD Air cooled MIG/MAG welding torch
EUR TorchesCompatible Torch and Parts For BINZEL

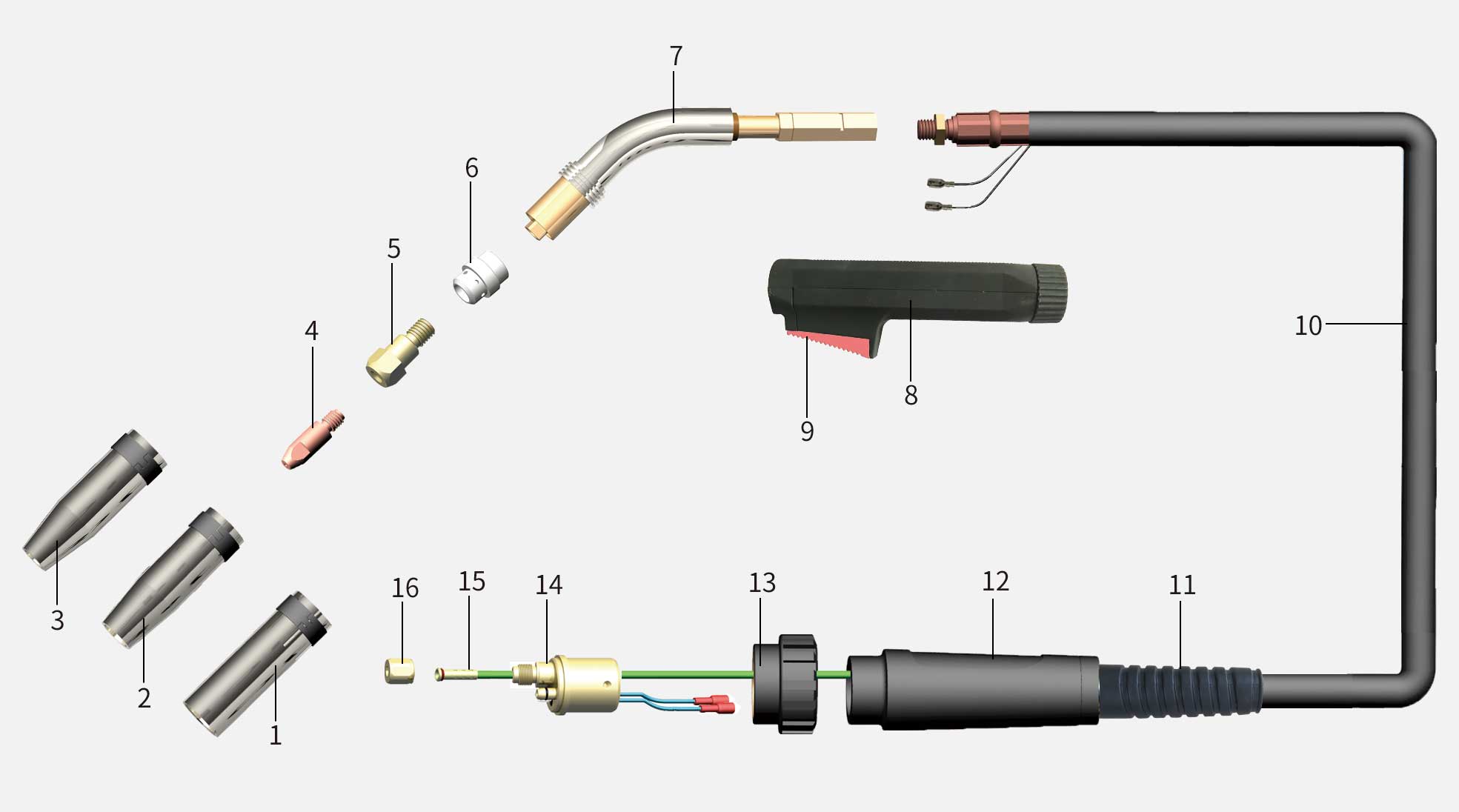

| No. | Order | Description | OEM p/n |
| MBZ0200.03 | BW 23KD Complete Torch-3m | 005.0016 | |
| MBZ0201.05 | BW 23KD Complete Torch-5m | 005.0064 | |
| 1 | MBZ0230.01 | Cylindrical Nozzle Ø17mm | 145.0047 |
| 2 | MBZ0230.02 | Conical Nozzle Ø12.5mm | 145.008 |
| 3 | MBZ0230.03 | Tapered Nozzle Ø10mm | 145.0128 |
| 4 | MBZ0232.01 | M6x28x0.6 Contact Tip, E-Cu | 140.0005 |
| MBZ0232.02 | M6x28x0.8 Contact Tip, E-Cu | 140.0051 | |
| MBZ0232.03 | M6x28x0.9 Contact Tip, E-Cu | 140.0169 | |
| MBZ0232.04 | M6x28x1.0 Contact Tip, E-Cu | 140.0242 | |
| MBZ0233.01 | M6x28x0.6 Contact Tip, CuCrZr | 140.0998 | |
| MBZ0233.02 | M6x28x0.8 Contact Tip, CuCrZr | 140.0054 | |
| MBZ0233.03 | M6x28x0.9 Contact Tip, CuCrZr | 140.0172 | |
| MBZ0233.04 | M6x28x1.0 Contact Tip, CuCrZr | 140.0245 | |
| 5 | MBZ0236 | Contact Tip Holder | 142.0003 |
| 6 | MBZ0239 | Gas Diffuser | 012.0183 |
| 7 | MBZ0243 | Swan Neck | 005.0003 |
| 8 | MBZ0223.01 | Handle | 180.0017 |
| 9 | MBZ0295.04 | Switch | 185.0005 |
| 10 | MBZ0260.03 | Cable Assembly,3m | |
| MBZ0260.05 | Cable Assembly,5m | ||
| 11 | MBZ0298 | Cable Support | 400.101 |
| 12 | MBZ0171 | Cable Support Machine Side | 501.2248 |
| 13 | MBZ0170 | Adapter Nut | 501.0213 |
| 14 | MBZ0172.01 | Central Connector KZ-2 | 501.002 |
| 15 | MBZ0180.01F | Green Liner,For wire Ø0.8-1.0,3.5m | |
| MBZ0180.01G | Green Liner,For wire Ø0.8-1.0,5.5m | ||
| 16 | MBZ0173 | Nut M10x1 | 501.0082 |
BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.
